High-Performance Harmonic Filter Cabinet for OEM Power Systems

Packaging Details : Export wooden case

Brand Name : nengdu

Payment Terms : T/T

Type : Active Harmonic Filter Cabinet

Model Number : SVG

Application : OEM Power Systems

Supply Ability : 10000

Filtering Performance : THDi < 5%

Response Time : Under 5ms

Delivery Time : 7-10 works

Switching Frequency : 25.6kHz

Certification : CE,IEC,RoHS,ISO9001

MOQ : 1

Filtration Efficiency : Up to 98%

Price : Negotiable

Place of Origin : shanghai

Contact Now

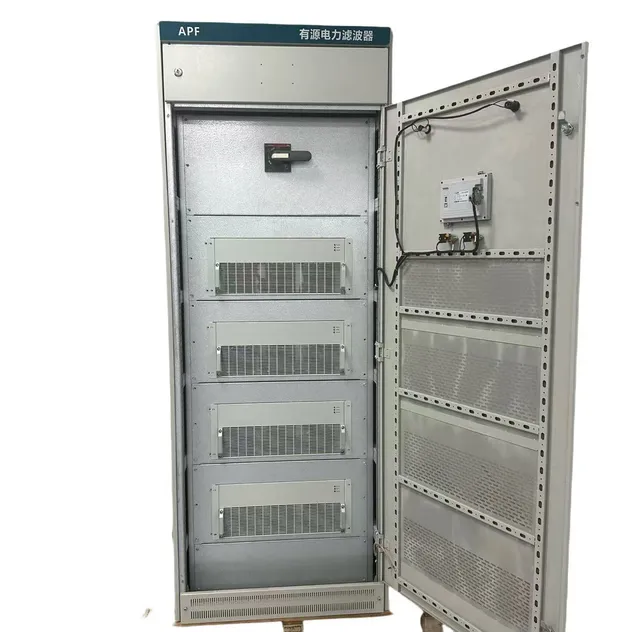

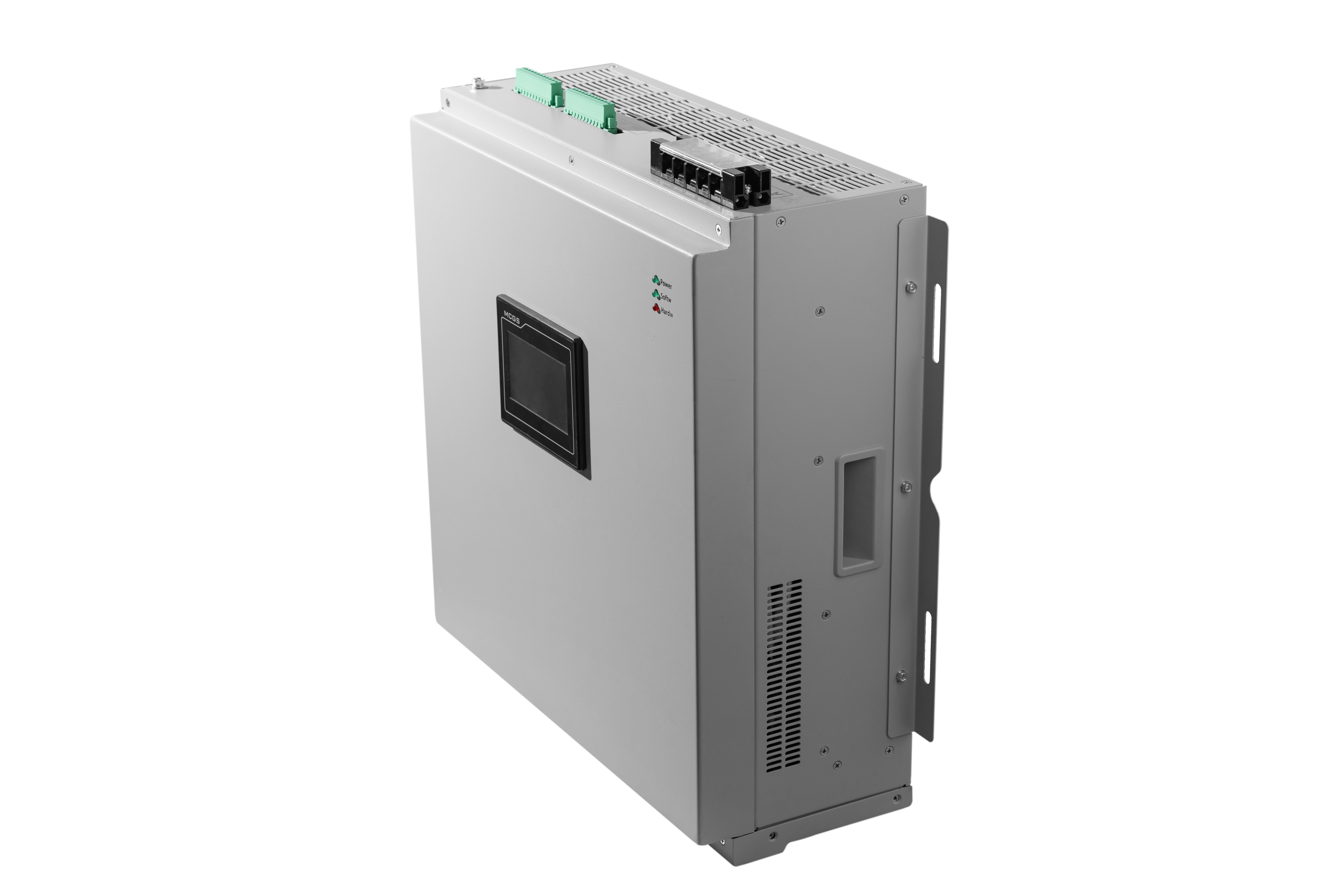

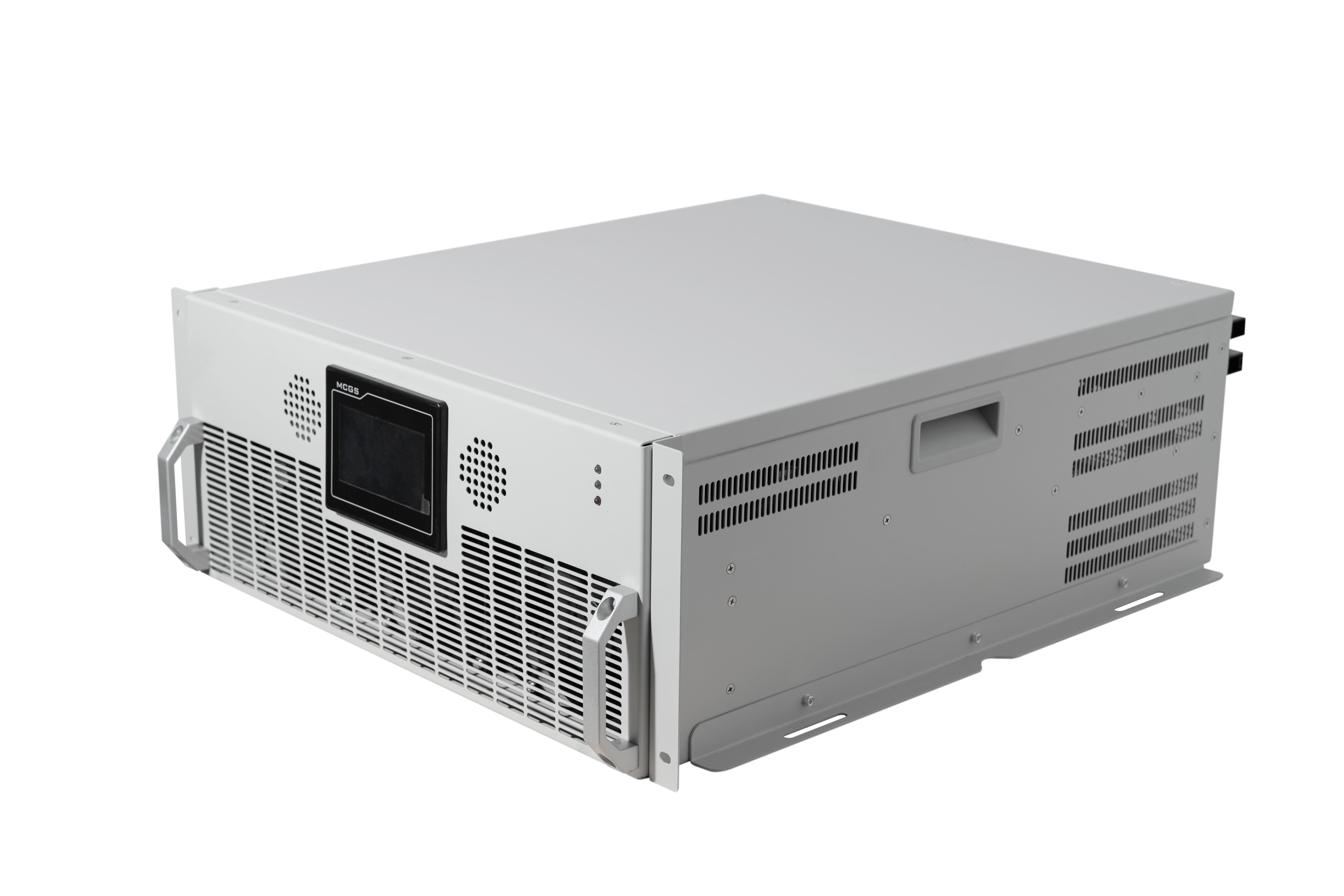

Active Harmonic Filter Cabinet

Product Introduction

Active Harmonic Filter Cabinet enclosure is available in classic black and silver, offering both ODM and OEM customization. The AHF works in parallel with the power grid, continuously analyzing harmonic distortions. It generates counter-phase currents via its inverter to neutralize harmonics in real time.

High-Performance Harmonic Filter Cabinet for OEM Power Systems

ODM Services: OEM Services:

Comprehensive Design & Production Custom logo embroidery
Accelerated Time-to-Market Private label packaging
Established Manufacturing Expertise Ideal for companies with unique product needs

Specification

Optimal Power Quality Control
• Seamless power factor correction
• Reactive power compensation for capacitive & inductive loads
• Precision PF maintenance -1.0 ≤ CosΦ ≤ 1.0
• Three-phase load unbalance under 5%
• Reduced neutral current

Harmonic Filter
• Adaptive Algorithm (ADALINE)
• THDi below 5% at rated loads
• Filtration efficiency up to 98%
• Full response time under 5ms
• On-demand or full compensation

Leading Edge Technology
• Innovative three-level topology
• Ultra-compact, modular design
• Fastest switching frequency of 25.6kHz
• Minimal power consumption ≤ 2%
• Advanced Thermal Dissipation Technology
.

Technical Parameter

ODM Services

OEM Services:

Comprehensive Design & Production
Accelerated Time-to-Market
Established Manufacturing Expertise

Custom logo embroidery
Private label packaging
Ideal for companies with unique product needs.

After Sales Service

15-month warranty

Global Support

Training

covering manufacturing defects

Global Support: 24/7 technical assistance and spare parts availability.

Online operation/maintenance training.

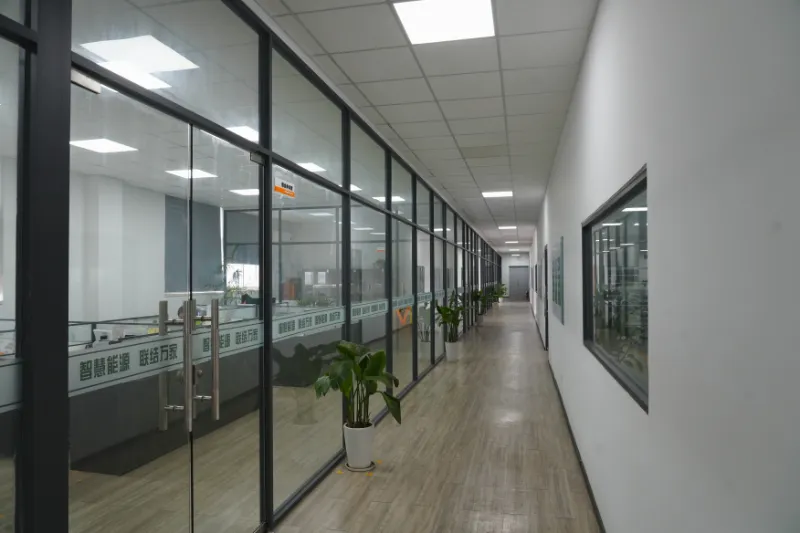

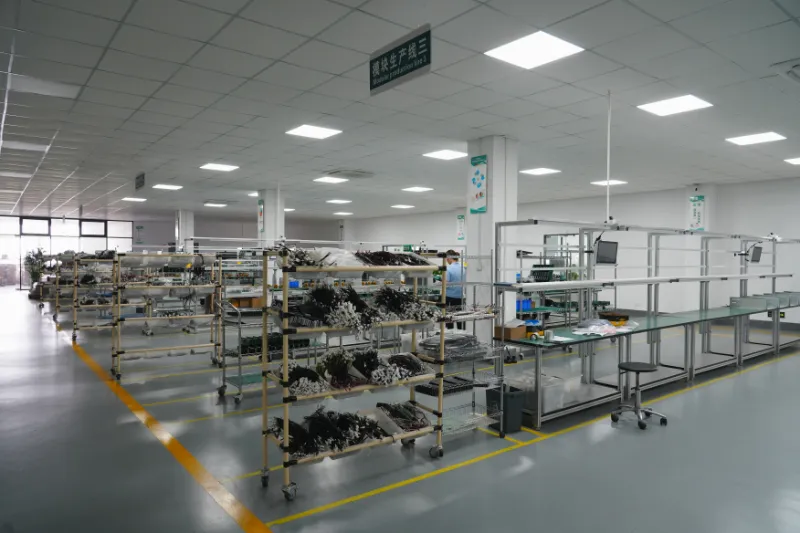

Company Profile

FAQ

Q1. Why choose Longliyuan products?
A: We boast cutting-edge equipment, an exceptional production team, and stringent quality control. We welcome you to visit our factory for confirmation.

Q2: Are you a trading company or manufacturer?
A: We are a specialized manufacturing factory.

Q3: Can you provide OEM and ODM services?
A: Yes, we offer both services.

Q4: Do you provide samples? Are they free or charged?
A: Samples require payment, and shipping costs must also be covered.
Q5: What is your delivery time?
A: Typically, delivery is within 7-15 days. The exact timeframe depends on the order size.
